MAGNETIC SEPARATION EQUIPMENT

Equipment Selection Starts with the Application

Mineralogy, particle size, magnetic response, feed condition, capacity and product target all shape the recommendation. We do not select equipment from a single parameter.

02

Application-led

Define what must be removed, recovered or upgraded.

Test-supported

Use representative sample information when selection risk is material.

Scope-controlled

State assumptions, exclusions and interface requirements clearly.

EQUIPMENT CATEGORY & FIELD CONTEXT

Understand the Machine — Then Confirm the Configuration

The equipment visual identifies the vertical-ring separator category. The field photo shows matrix boxes installed in service. Neither replaces project-specific engineering confirmation.

Unbranded concept visualization of a vertical ring high-gradient magnetic separatorCATEGORY ILLUSTRATION
Vertical-ring high-gradient separatorOriginal, brand-neutral category illustration. Final casing, interfaces and supply scope are confirmed by project.

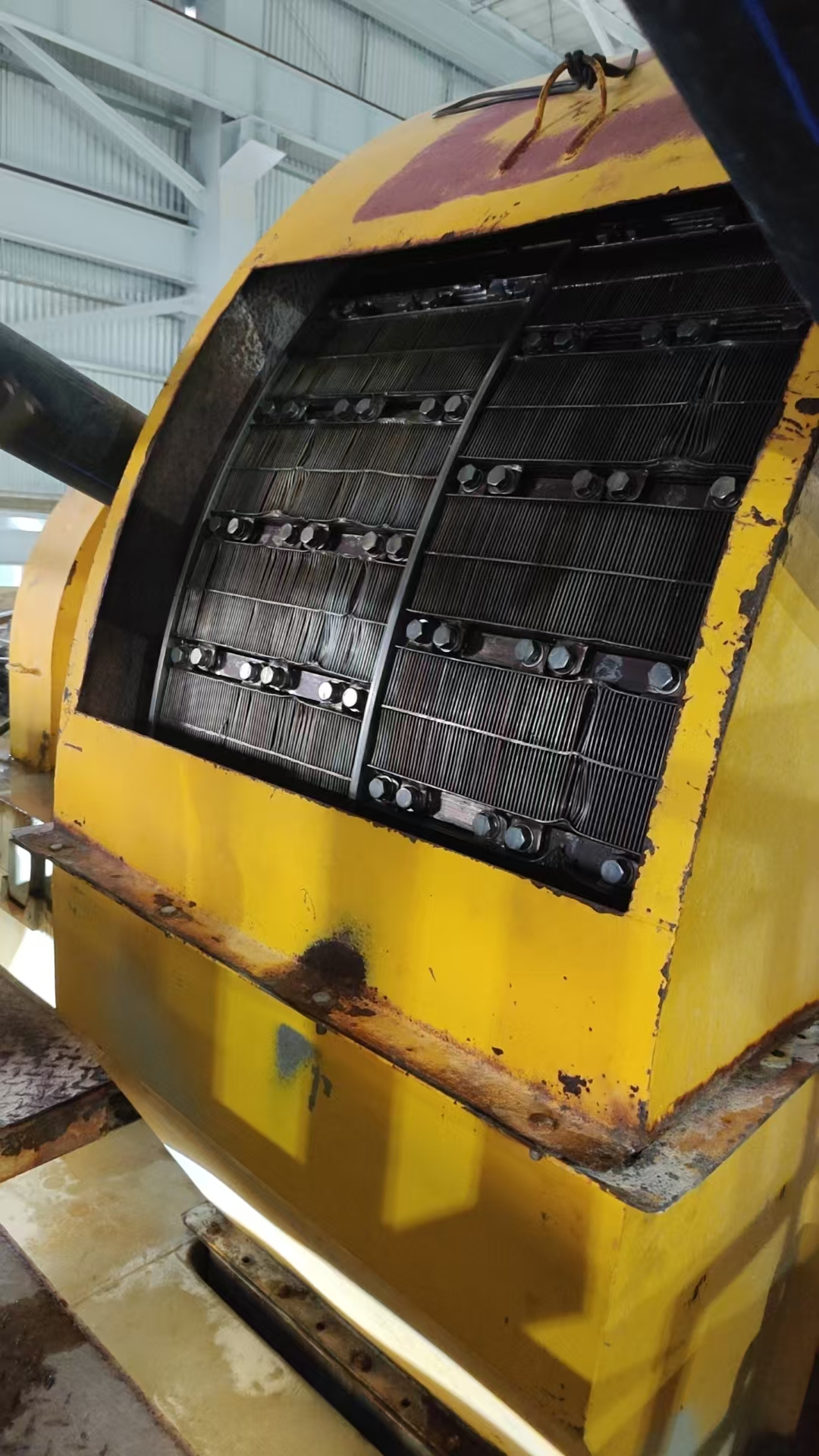

Matrix boxes installed in a vertical ring magnetic separator in serviceFIELD REFERENCE
Matrix boxes in serviceInstalled position and mounting context shown for requirement discussion.

VERTICAL RING WHIMS

High-Gradient Separation for Weakly Magnetic Minerals

For impurity removal and mineral upgrading under confirmed process conditions.

Request Equipment Recommendation

Typical applications

Silica sand, feldspar, kaolin, iron ore, manganese and other mineral-processing duties.

Selection inputs

Mineral, feed size, solids condition, capacity, current process and target specification.

Configuration review

Magnetic duty, matrix arrangement, slurry handling, flushing and operating interface.

Supply scope

Equipment, selected auxiliary components, inspection records and agreed technical documents.

Important boundary

Final configuration is confirmed after technical review; published information does not replace project-specific selection.

OTHER EQUIPMENT

Drum, Plate & Selected Laboratory Units

Equipment pages state practical use, required inputs and selection limits without exposing complete proprietary process combinations.

01

Wet Drum Separators

For recovery, pre-concentration and impurity-removal duties in wet mineral-processing flows.

CTB · CTS · CTN application review
02

Flat Plate Separators

For selected fine-material impurity-removal duties where feed condition and magnetic response support the application.

Application-specific selection
03

Laboratory & Pilot Units

For sample evaluation, process comparison and project-stage testing under a defined test scope.

Test-scope based supply

REQUEST CHECKLIST

Information Needed for an Equipment Recommendation

  • Mineral and separation objective
  • Feed particle-size range and solids condition
  • Required capacity and operating hours
  • Current process and existing equipment
  • Feed and target product specifications
  • Representative sample availability
  • Site utilities, space and interface constraints
Send Equipment Requirement

READY TO START?

Send Us the Model, Drawing or Sample.

Start with the information you already have. We will review it before proposing the next step.
