Machine identity
Separator brand, model and nameplate reference.
COMPATIBLE REPLACEMENT PARTS
Replacement Parts Confirmed Against Real Specifications
We review the separator model, drawing, dimensions, reference or confirmed sample before quotation. Compatibility is confirmed case by case.
01
Verify before quotation
Model, drawing and dimensions are reviewed before a commercial offer.
Direct-fit replacement scope
Fit and operating conditions are confirmed without unnecessary separator changes.
Inspection at agreed milestones
Key measurements, inspection and packing records can be shared before shipment.
CORE CATEGORY
Matrix Boxes & Magnetic Matrices
Rod diameter matters. Overall dimensions alone are not enough to confirm a replacement matrix box.
Start with these four itemsSeparator brand/model · Matrix rod diameter · Overall dimensions · Required quantity
What we verify
Matrix geometry
Rod diameter, spacing, overall dimensions and matrix arrangement.
Material & weight
Confirmed material, unit weight and expected service condition.
Mounting details
Interfaces, fixing points, clearances and installation direction.
Reference evidence
Drawing, original part reference, measured photos or a confirmed used sample.
MEASUREMENT GUIDE
Three Photos That Make a Replacement Inquiry Clearer
Use these views as a method guide, not as a published product specification. Keep the tape straight, show both contact points and photograph the reading clearly.

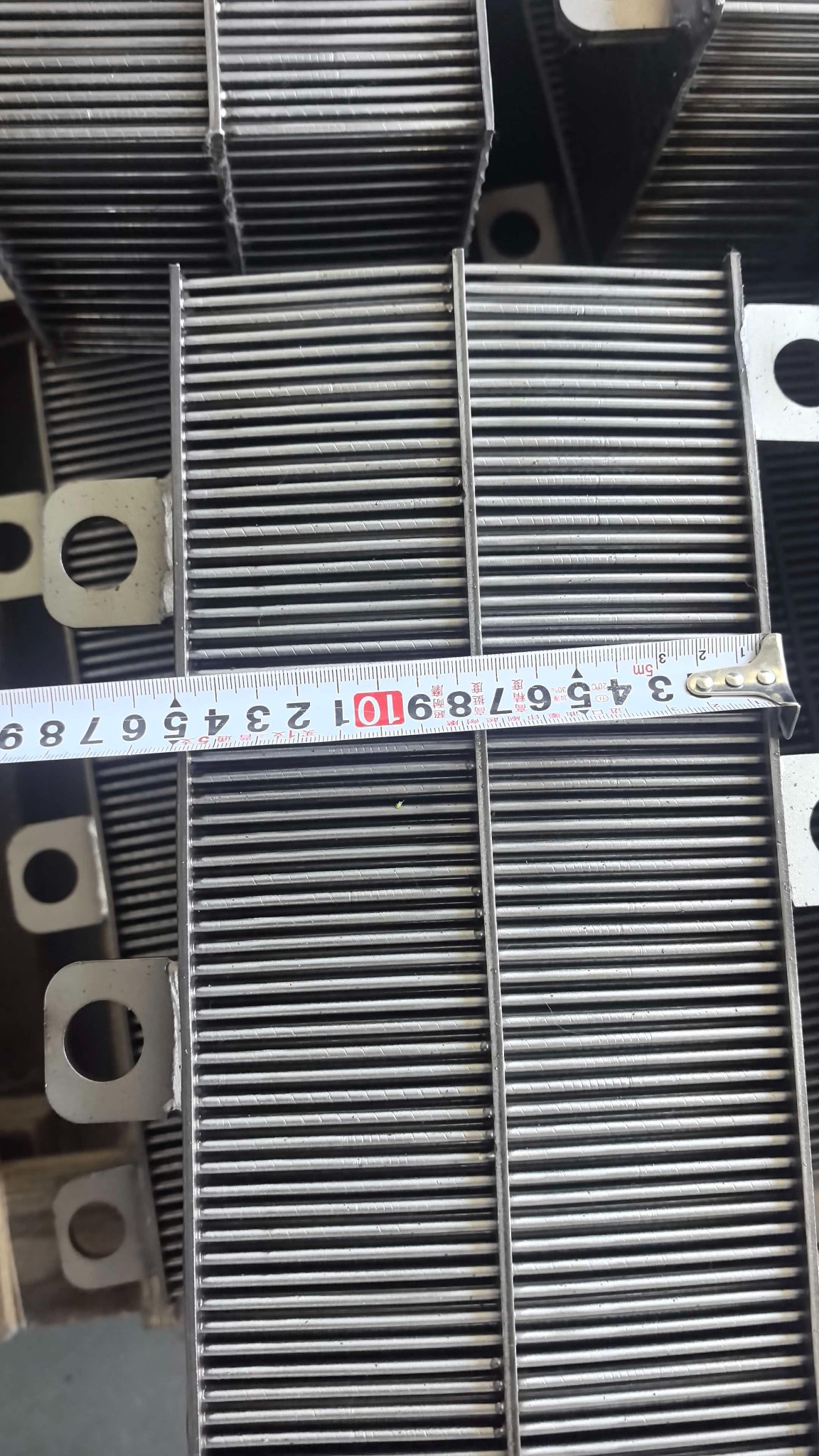

01Measure end frame to end frame. State separately whether mounting lugs are included.

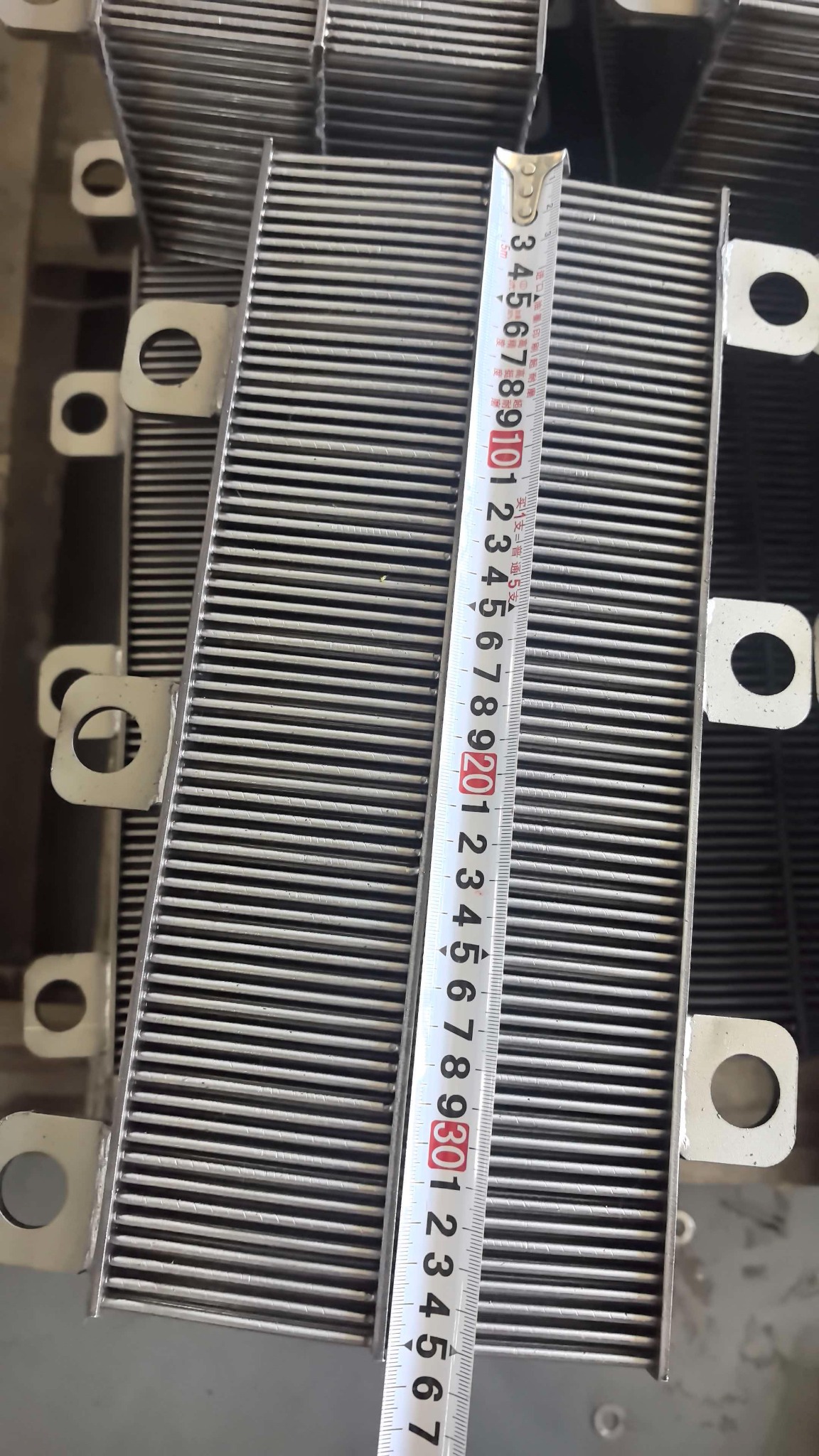

02Measure square to the frame and keep the hook firmly against the first reference surface.

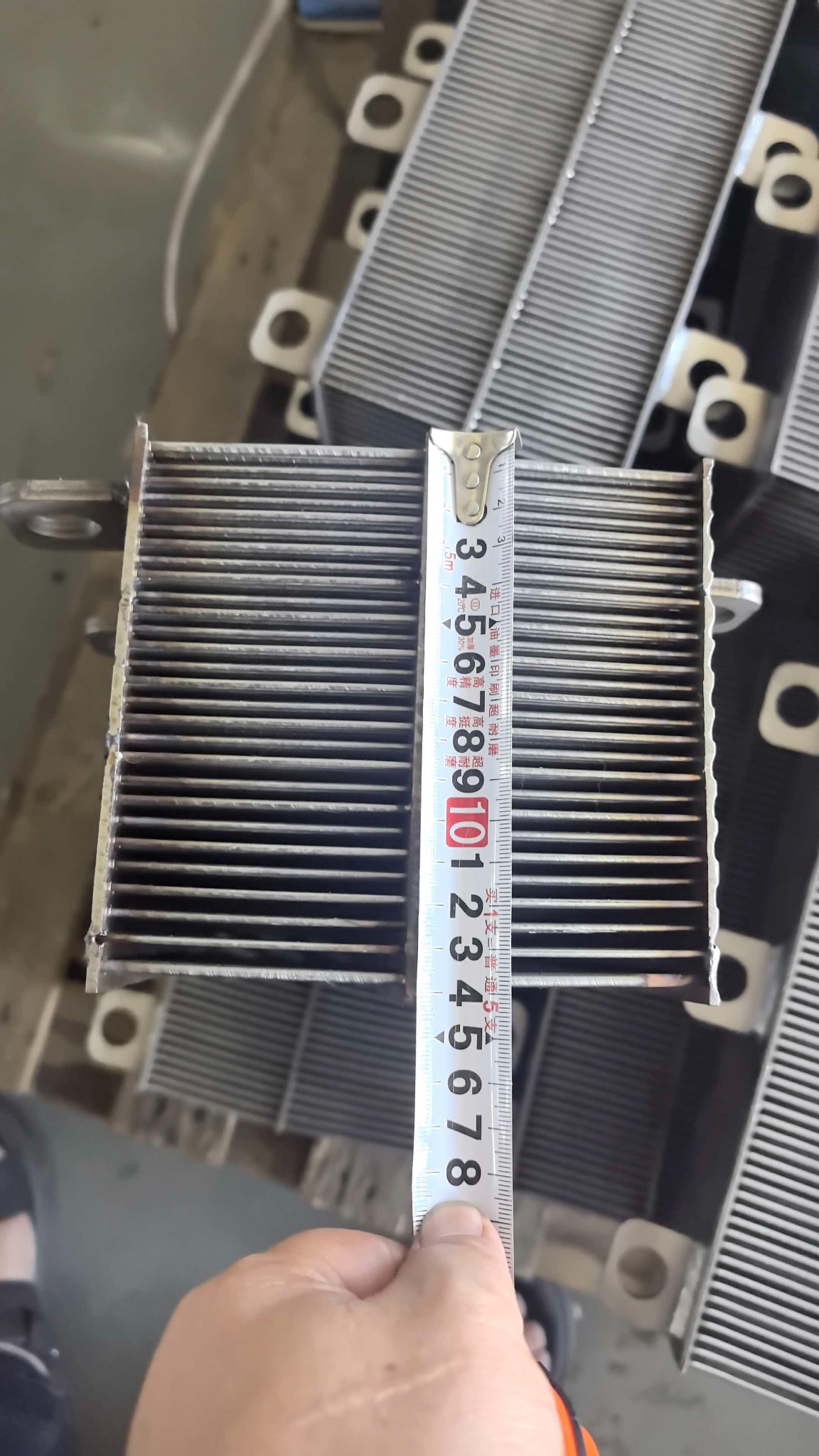

03Measure across the matrix body; record mounting-lug projection and hole positions separately.
Still required for compatibility review:matrix rod diameter · mounting-hole diameter · hole-center spacing · material · unit weight · machine brand/model
PARTS RANGE
Built for Specification-Based Replacement
Brand names and model references are used only to identify compatibility. Ranlink Mag is an independent supplier.
| Part group | Typical position | Information needed |
|---|---|---|
| Matrix Boxes & Magnetic Matrices | Vertical ring high-gradient magnetic separators | Model, overall dimensions, rod diameter, material, unit weight and mounting details |
| Pinch-Valve Sleeves | Common DN100 / DN125 applications | Nominal size, dimensions, material, connection and operating condition |
| Pulsating Mechanism Parts | Pulsation and drive assemblies | Machine model, part drawing/photo, mounting dimensions and required quantity |
| Valve Components | Slurry, water and process valve positions | Valve type, model, nominal size, material and connection |
| Bearing Housings & Mechanical Parts | Drive, support and rotating positions | Model, drawing, dimensions, material and used-part photos |
| Electrical-Control Spares | Separator electrical and control systems | Part number, electrical rating, control-system reference and photos |
COMPATIBILITY REVIEW
Send What You Have
A drawing is useful, but not always the only starting point.
Best
Manufacturing drawing with material, tolerances and mounting details.
Good
Original part reference plus measured dimensions and several clear photos.
Possible
Nameplate photo, used-part photos and a confirmed physical sample.
Not enough
A machine brand name without model, measurements or part reference.
READY TO START?
Send Us the Model, Drawing or Sample.
Start with the information you already have. We will review it before proposing the next step.
